Press Brake Forming: Precision Bending for Industrial-Grade Steel Solutions

One of the most essential and widely used processes in metal fabrication is press brake forming. Starting as a manually operated process requiring significant strength and effort from its operators, the press brake has come a long way as a result of advancements in technology. Thanks to these continued improvements in the method’s versatility, efficiency, and accuracy, press brake forming has become a preferred method for bending steel into a wide range of components. Whether you're in construction, transportation, or OEM/heavy machinery manufacturing, press brake forming plays a vital role in shaping the steel parts that support your operations.

In this article, we will break down what press brake forming is, how it's used across different steel applications and industries, and important things to consider when deciding on a vendor for your press brake services.

Key Components of a Press Brake Machine

The press brake is comprised of several critical components including a frame, ram, bed, back gauge, control system, and the punch and die. The frame is the overall structure that supports the entire machine while the ram is the moving part that applies varying levels of force to the metal plate. The metal plate is placed on the bed and the back gauge ensures that the plate is in an accurate position. The punch is the upper tool that presses into the metal, while the die is the lower tool that supports the metal and shapes the bend.

Additionally, there are several different types of dies varying by size and shape and that are designed for different bending tasks. Some of the more common lower dies fall into the following categories: V-dies, U-dies, and Z-dies.

What Is Press Brake Forming?

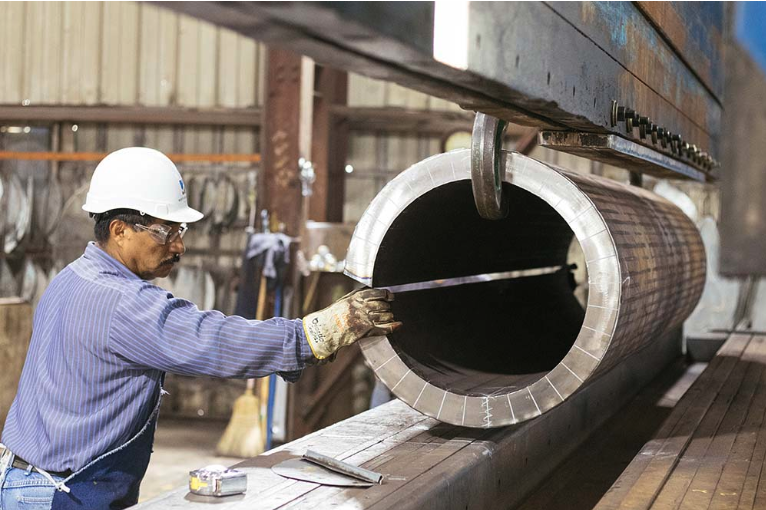

Press brake forming is a fabrication technique used to bend metal plates into predetermined angles and shapes ranging from eccentric and concentric cones to crimp plates to cylinders. Press brake forming can be used on a variety of materials including steel, aluminum, copper, and brass. This technique is accomplished using a machine called a press brake, which applies controlled force along a straight axis using a punch and die set. This force causes the steel to deform and bend precisely along a defined line.

Below are the varying types of press brakes:

• Mechanical Press Brakes – Typically used in high-volume production due to its speed and consistency

• Hydraulic Press Brakes – Suitable for thicker steel and custom jobs because they offer controlled pressure

• CNC Press Brakes – Supports more precise, repeatable bends, as well as multi-step bends and complex geometries because it incorporates computer-controlled programming. Because it is computer controlled, this method is more flexible and efficient therefore reducing setup times, increasing production speed, and ease of programming different bend sequences.

Depending on the machine’s tonnage and configuration capabilities, the press brake forming process can accommodate a range of materials from light-gauge steel to heavy plate steel over an inch thick.

Common techniques used in press brake forming include:

• Air Bending – The most common method which utilizes three contact points and allows for more flexibility in angle variation.
• Bottoming – Steel is pressed through higher force into the die which leads to a more accurate angle.
• Coining – High pressure is applied to stamp a permanent bend, offering the tightest tolerances.

Steel Applications of Press Brake Forming

Because of its versatility and reliability, press brake forming has many common purposes across multiple industries. Here are some standard applications of steel bending through press brake services:

Construction & Infrastructure

• Structural steel brackets, support angles, and base plates
• Custom steel framing components
• Architectural paneling and decorative facades

Transportation & Automotive

• Truck bed supports, fenders, and frame reinforcements
• Chassis and structural reinforcements
• Parts for trailers and heavy-duty transport vehicles
• Cab substructures and mounting flanges

Agricultural Equipment

• Equipment housings, buckets, blade guards, weld-on tabs, and cutting-edge mounts
• Structural components and formed channels for plows, harvesters, and seeders

Oil, Gas & Petrochemical

• Pressure vessels, storage tanks, and pipeline components.

Energy & Utilities

• Electrical enclosures and backplates
• Solar panel frames and racking components
• Wind turbine support brackets and base structures

OEM & Manufacturing

• Machine frames, tool beds, and safety enclosures
• Crimp plates and tie-down mounts
• Control panels and formed boxes
• Structural subcomponents for skids, racks, and assemblies

Mining & Quarrying

• Formed liners for chutes, hoppers, and crushers
• Bucket shells and wear plates for excavation equipment
• Lip shrouds, grizzly bars, and impact liners
• Bending profiles for dozer blades, draglines, and screen housings

Because it supports both low-volume prototyping and high-volume production runs, press brake forming solidifies its place as an essential process for industries requiring durable and precise steel components.

Key Considerations When Choosing a Press Brake Forming Vendor

Not all press brake services are created equal. With that in mind, choosing the right vendor can mean the difference between a successful, cost-effective project or costly delays and rework.

Below are some of the variables and factors that you should consider when evaluating a partner to handle your press brake forming needs:

Equipment Capability & Tonnage

Check if the vendor's press brakes can handle the steel grade, thickness, and dimensions needed for your project. Remember that high-tonnage machines and wide bed lengths are necessary for certain material grades, as well as medium, heavy or large-format parts.

Material Expertise

Make sure the vendor is experienced in forming the specific type of steel that you’re using and that they understand the intricacies of each type— whether it's mild steel, stainless steel, or high-strength alloys like abrasion resistant and manganese steel. Take into consideration the wear plate grades like AR400, AR450, and AR500 and ensure that your vendor understands that each steel type responds differently to pressure and requires an adjusted bend radii.

Precision and Tolerances

Ask about the vendor's ability to hold tight tolerances, especially for projects requiring critical alignments or assembly fit. CNC-controlled press brakes typically offer the best accuracy and repeatability because of their computer—controlled programming. However, a highly skilled press operator is also a valuable asset and important for irregular shapes as well as day to day needs.

CAD Design Support

Look for a partner who can review your CAD / 3D drawings or help you optimize designs for manufacturability. Vendors with in-house CAD support can help reduce waste, improve efficiency and accuracy, and ensure the best bend sequence.

Timeline and Production Capacity

Timeliness can be critical to your operation. Evaluate whether the vendor can match your production timeline and if they offer a scalable solution for a continued partnership or repeat orders.

Secondary Services

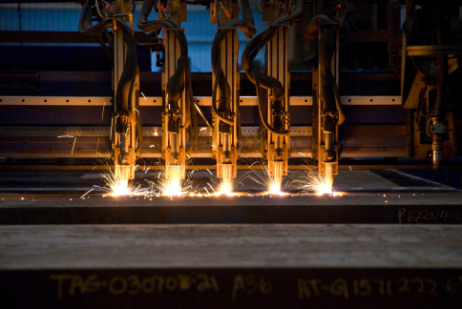

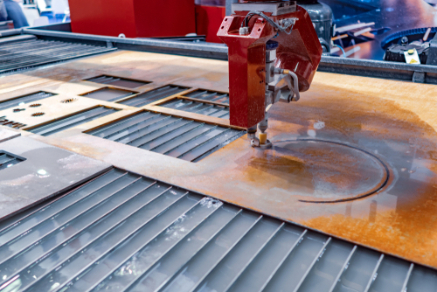

Your projects don’t always stop at press brake forming. Looking for vendors that offer value-added services beyond bending such as welding, laser, torch, saw, waterjet, oxy, plasma, laser cutting, or finishing, such as powder coating or galvanizing, can streamline your supply chain and reduce overall lead times.

Quality Assurance

When evaluating trustworthy vendors, ensure that they have proper quality control processes and certifications such as ISO 9001. To ensure your project’s success, ask about inspection methods, bend testing, and documentation provided with each job.

North Shore Steel – Press Brake Forming

Press brake forming is a vital part of steel fabrication, offering unmatched flexibility, strength, and precision. Choosing the right partner for your press brake forming needs ensures your steel products meet both performance and design standards.

At North Shore Steel, we combine capable, state-of-the-art equipment with decades of expertise to deliver reliable, precision-formed steel parts tailored to your exact specifications. With multiple presses ranging from 400 to 3,000 tons, a variety of plate grades including A36, A514, A572, A573, and A588, medium to heavy plate processing capabilities, our stocked inventory of abrasion resistant Wearalloy®, Nickle Chrome Plus, Super Chrome, and Mangalloy® products, and the processing ability to waterjet, oxy, plasma and laser cut, North Shore Steel is a company that you can trust for your next steel plate forming project.

Our team of skilled press operators, engineers, and dedicated sales professionals are ready to support your next project with quality and craftsmanship you can count on, from design to delivery.
